V2com Portable Workstation Z2

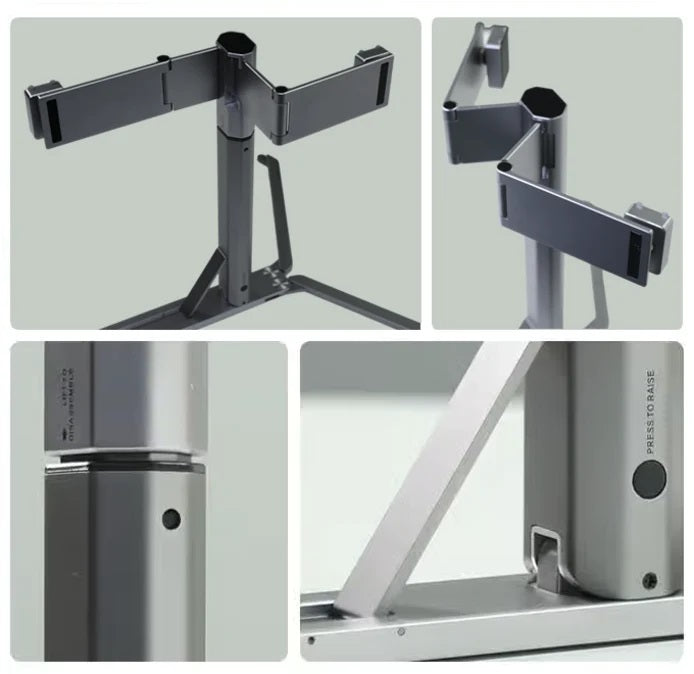

Z2 is the first in the world to apply the principle of nitrogen pressure rise and fall to the bracket to achieve three-screen display. This technology is mainly applied in the aerospace and automotive fields.Z2 utilizes the damping characteristics of nitrogen pressure which are safe, stable, and durable, and can achieve the automatic lifting function just by lightly pressing the button.

And when in use, the damping characteristics can be used to hover at any height. The entire bracket is made of pressure-resistant and super-light metal materials. The nitrogen lifting device is sealed inside the bracket and reaches a critical equilibrium state, which ensures the stable lifting of the two screens. This design enhances the stability and durability of the bracket.

The height adjustment of the bracket is achieved through pressure. Just press the lifting button of the bracket to raise the bracket. The height adjustment range is: 9.45-14.17  inches, which is the best visual range for the human eye to view the screen.

The bracket is composed of two parts, the upper and the lower, and each part can be folded. By combining the upper and lower parts together, it can become a bracket for dual screens.

Only Z2 can achieve such a simple Triple screens.Build the workstation with three screens in 3 seconds, free from any restrictions and constraints of any laptops and digital devices, freely combine and disassemble for use, quickly move and install, and increase your work efficiency anytime and anywhere!

The bracket arm connecting the screen adopts a fully metal dual-axis design. The design of two rotating axes can increase the angle of omnidirectional rotation adjustment, and can also adjust the distance between the screens, with a maximum rotation of 360 degrees.

The connection between the bracket and the screen adopts a double clasp design, and the screen and bracket can only be separated by pressing the button, which is a very strong and safe connection method.

After the base of the bracket is opened and folded, it will become a Y-shaped support structure. The design of this structure can not only stabilize the bracket, but also be used as an additional heat dissipation bracket for the laptop. When the laptop is placed on the bracket, the space between the bracket and the bottom of the laptop can allow air to enter, which helps the laptop to dissipate heat. At the same time, the weight of the laptop is added to the bracket to make the base more stable.

The screen adopts a full-metal shell with a thickness of only 0.25 inch  and a single weight of 1.35 lbs. The design takes into account the simplicity and aesthetics of use, and deliberately hides the data interface on the back. In this ultra-thin shell, two stereo speakers are also built-in. While connected to the computer, it can also release sound and music, which greatly improves the usage efficiency of the screen.

Z2 provides two screen options of 14 inche and 15.6 inche. The screen resolution is 1920*1080P, 60HZ, FHD full HD, IPS wide viewing angle, and 300 CD/㎡, which is completely sufficient for the use of this size screen.

-Two TYPE-C full-featured interfaces, using USB3.1 (via DP protocol), charging can realize the input of video and audio signals. Only one cable is required to make the splitter work normally. If another TYPE-C is connected to other external devices, it can also achieve PD3.0 100W (20V/5A) charging effect.
-One mini hdmi interface, suitable for devices with HDMI interface, this interface can only transmit video signals, and an external power supply is required to power the monitor when in use.

-The power on/off key is hidden at the rear of the screen, and it is integrated with the function setup key. A gentle press can turn on the screen, and an up and down toggle can implement menu configurations.
-One 3.5mm audio jack, even when used at night, it will not disturb others.

-In such a super-thin casing, each screen also comes with a speaker, and such a design ensures the functional integrity of the screen.

Z2 supports MAC/Windows/Android/Linux/Chrome OS systems, and has strong versatility, making it compatible with various devices. It can be connected to computers, such as laptops, desktops, or tablets, and mobile phones, such as iPhone15, iPad, Hammer TNT, Huawei EMUI, or Samsung DEX. It can also be used with game consoles, including Nintendo Switch, PS4/PS5, and Xbox, and even in a car. With LAPTOMO, there are countless possibilities to explore.
